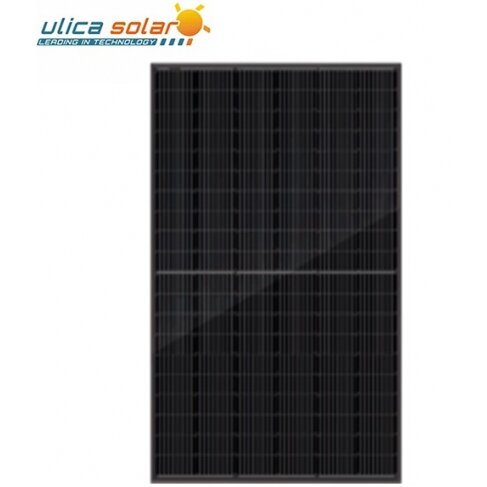

Ulica Solar Monocrystalline PV Panel, Half-Cut, 405Wp

  • Ulica Solar Monocrystalline PV Panel, Half-Cut, 405Wp

    Code: 9411
    86.01  VAT incl.
    (71.08  VAT excl.)
    89.83  You save 3.82
    In stock.
    0 pcs - Vilniaus warehouse (delivery 2 w.d.)
    236 pcs - European warehouse (delivery 7 w.d.)
    Add to cart

    Before buying/ordering:
    Free delivery when ordering from 1 pallet (36 pcs). If you order a smaller quantity, the transport price is 60 EUR. Contact for more specific information.

  • Manufacturer
    OptonicaLED, UlicaSolar
    Brand
    Optonica, UlicaSolar
    Maximum Power, Pmax, from...to, W
    >400…500
    Maximum Power, Pmax, W
    405
    Temperature Coefficient of Pmax, %/°C
    -0.34
    Power Output Tolerance, W
    0 / +5
    Open Circuit Voltage, Voc, from...to, V
    >35…40
    Open Circuit Voltage, Voc, V
    37.3
    Temperature Coefficient of Voc, %/°C
    -0.265
    Maximum Power Voltage, Vmp, from...to, V
    >30…35
    Maximum Power Voltage, Vmp, V
    31.3
    Maximum System Voltage, V
    DC1500
    Short Circuit Current, Isc, from...to, A
    >12…14
    Short Circuit Current, Isc, A
    13.69
    Temperature Coefficient of Isc, %/°C
    +0.049
    Maximum Power Current, Imp, A, from...to, A
    >10…15
    Maximum Power Current, Imp, A
    12.94
    Max Series Fuse Rating, A
    25
    Module Efficiency, from...to, %
    >20…21
    Module Efficiency, %
    20.74
    Warranty, Year
    12 Product / 25 up to 85% Power
    Nominal Operating Cell Temperature, NOCT, °C
    43±2
    Number of Cells
    108
    Glass thickness, mm
    3.2
    Frame Material
    Anodized aluminium
    Frame Color
    Black
    Backsheet color
    Not specified
    Junction Box Protection class
    IP68
    Cable thickness, mm²
    4
    Cable length, mm
    400
    Connector type
    MC4
    Number of diodes
    Not specified
    Wind Load, Pa
    2400
    Snow Load, Pa
    5400
    Test conditions
    Air Mass (AM)=1.5, Irradiance(E)=1000W/m², Module Temperature(Tc)=25°C
    Weight, kg
    21.2
    Items per Pallet
    72
    Size of Pallet, mm
    1762x1130x2540
    Size of product, mm
    1722x1134x30
    Product code
    UL-405M-108HV
    LED power, W
    1762x1130x2540
    In Vilnius warehouse
    Not present
