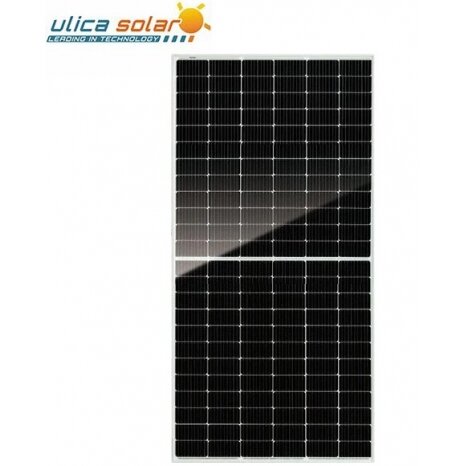

Ulica Solar Monocrystalline PV Panel, Half-Cut, 455WP

  •   Ulica Solar Monocrystalline PV Panel, Half-Cut, 455WP
      Ulica Solar Monocrystalline PV Panel, Half-Cut, 455WP 1
    Ulica Solar Monocrystalline PV Panel, Half-Cut, 455WP
    Ulica Solar Monocrystalline PV Panel, Half-Cut, 455WP 1

    Ulica Solar Monocrystalline PV Panel, Half-Cut, 455WP

    Code: 9410
    Inquire about this item
    82.23 € VAT incl.
    (67.96 € VAT excl.)

    Before buying/ordering:
    Free delivery when ordering from 1 pallet (31 pcs). If you order a smaller quantity, the transport price is 60 EUR. Contact for more specific information.

  • Manufacturer
    OptonicaLED, UlicaSolar
    Brand
    Optonica, UlicaSolar
    Maximum Power, Pmax, from...to, W
    >400…500
    Maximum Power, Pmax, W
    455
    Temperature Coefficient of Pmax, %/°C
    -0.34
    Power Output Tolerance, W
    0 / +5
    Open Circuit Voltage, Voc, from...to, V
    >45…50
    Open Circuit Voltage, Voc, V
    49.9
    Temperature Coefficient of Voc, %/°C
    -0.29
    Maximum Power Voltage, Vmp, from...to, V
    >40…45
    Maximum Power Voltage, Vmp, V
    41.1
    Maximum System Voltage, V
    DC1500
    Short Circuit Current, Isc, from...to, A
    >10…12
    Short Circuit Current, Isc, A
    11.64
    Temperature Coefficient of Isc, %/°C
    +0.049
    Maximum Power Current, Imp, A, from...to, A
    >10…15
    Maximum Power Current, Imp, A
    11.07
    Max Series Fuse Rating, A
    20
    Module Efficiency, from...to, %
    >20…21
    Module Efficiency, %
    20.93
    Warranty, Year
    12 Product / 25 up to 85% Power
    Nominal Operating Cell Temperature, NOCT, °C
    43±2
    Number of Cells
    144
    Glass thickness, mm
    3.2
    Frame Material
    Anodized aluminium
    Frame Color
    Silver
    Backsheet color
    Not specified
    Junction Box Protection class
    IP68
    Cable thickness, mm²
    4
    Cable length, mm
    Not specified
    Connector type
    MC4
    Number of diodes
    Not specified
    Wind Load, Pa
    3800
    Snow Load, Pa
    5400
    Test conditions
    Air Mass (AM)=1.5, Irradiance(E)=1000W/m², Module Temperature(Tc)=25°C
    Weight, kg
    23.3
    Items per Pallet
    62
    Size of Pallet, mm
    2134x1130x2350
    Size of product, mm
    2094x1038x35
    Product code
    UL-455-144HV
    LED power, W
    2134x1130x2350
    In Vilnius warehouse
    Not present
